Unica 520

Your Most Trusted Ally
in the Operating Room

The Only Surgical Light Without Glare

UNICA 520 delivers deep, stratified illumination that is completely glare-free, ensuring optimal visual comfort during surgical procedures. The light beam passes through a precision-engineered diffusion screen with a calibrated surface roughness index, allowing it to collimate and layer the light evenly.

Equipped with RIMSA’s patented 2R Double Reflection System, UNICA 520 maximizes the light-emitting surface to produce high-performance illumination with depth, clarity, and shadow-free precision—reaching up to 160,000 Lux while remaining entirely glare-free.

UNICA 520 Surgical Light

The UNICA 520 surgical lamp by RIMSA delivers clean, white light using only white LEDs across 7 adjustable color temperatures, eliminating the risk of unwanted colored shadows. Designed for precision and ease of use, its slim reflector is highly maneuverable, while an advanced electronic system activates a secondary group of LEDs, reflected through optical lenses to create two distinct light field diameters.

Key features include:
–Glare-free illumination with optical-grade PMMA lenses and high-reflective mirrors
–Endoled Function: enables soft ambient light for a calming, low-intensity lighting environment during specific phases of surgery.

Features

Compensation Area

3D Light

Double Reflection

Always-in-Focus Illumination

Accessories

Double Yoke

FULL HD Wire

FULL HD WiFi

4K Wire

Monitor Arm

Wall Control Panel

Battery Group

IR Remote Control

Full Integration System

UNICA 520 Available Configurations

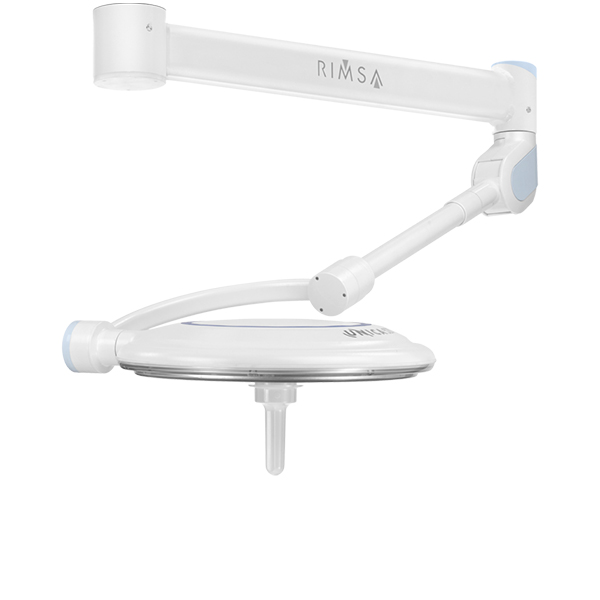

UNICA 520 Ceiling-Mounted

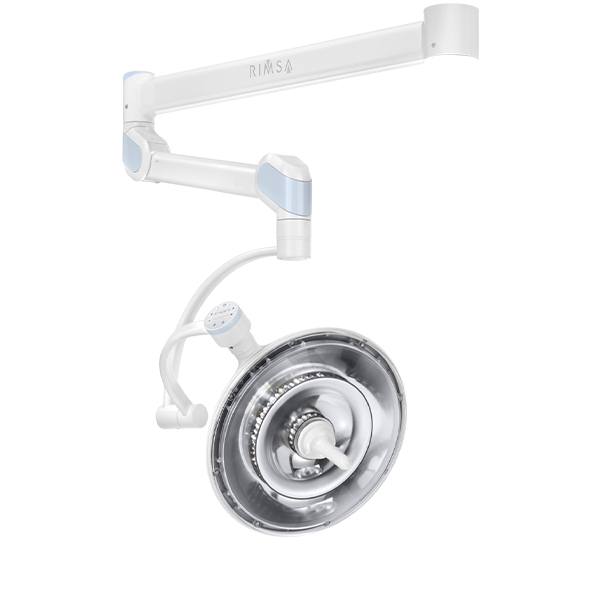

UNICA 520 Ceiling-Mounted + Double Yoke

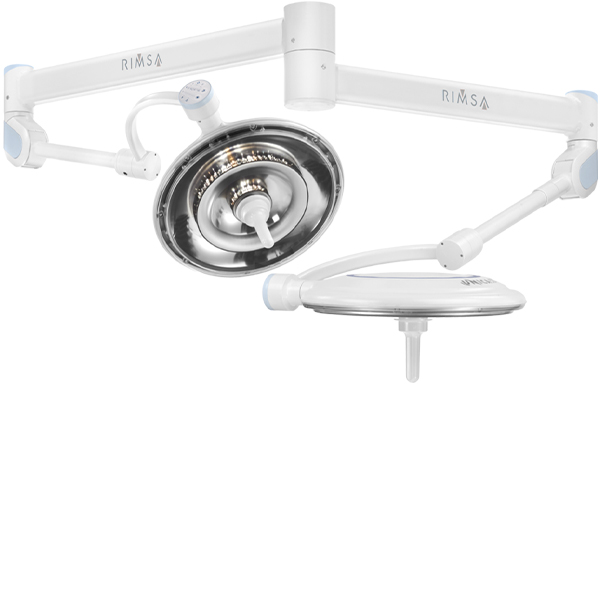

UNICA 520 +
UNICA 520

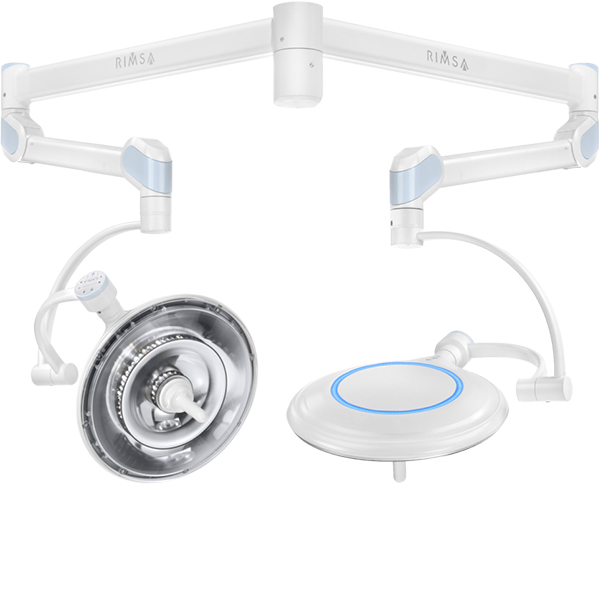

UNICA 520 + UNICA 520 + Double Yoke

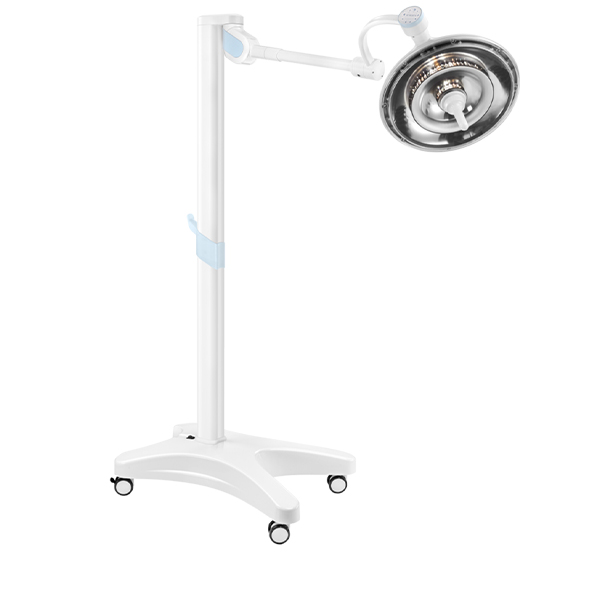

UNICA 520 on Mobile Stand

Technical Specifications

Illuminance at 1 Meter (Ec)

160.000 Lux

Lamp Head Diameter

52 cm

Color Temperature (7 Selectable Levels)

3.800-5.000K

Light Field Diameter

150-350 mm

LED Lifespan

> 60.000 hours

Light Intensity Control

10-100%

Engineered to Perform from Every Angle
