G-Led

Stable and Flexible

Wide range of motion

The G-Led from RIMSA’s Golia Series features a circular reflector and an extra-long three-joint arm measuring 1012 mm, making it the longest lamp in the entire series. This model is specifically recommended for operations involving large components or work areas that require wide-range lighting mobility. Its extended reach allows operators to easily direct intense, focused illumination across broad work surfaces, ensuring visibility and precision even in complex industrial tasks.

G-LED Industrial Lamp

The G-Led model from the Golia Series stands out for the length of its arm, allowing operators to maneuver the lamp more freely and position it in the most convenient way for their work.

– Key Features: The G-Led model from the Golia Series features the characteristic circular reflector of the series and a three-joint arm with a length of 1012 mm. This type of arm ensures great stability for both the lamp and the light direction. The arm length is greater than that of other models in the series, making it ideal for applications where a wide range of movement is required.
Metal structure, Jointed arm, Printed circuit board, Anti-corrosion paint, Pyrex glass.
– Mounting System: This model is mounted using four screws, to be inserted directly into the lamp base.
– Available Models: Two versions have been designed for the G-Led model: TR (regular voltage) and BT (low voltage).
– Power Supply: The TR model can be powered at 110–240 V with a type C – Schuko plug. The BT model can be powered at 12–24 V without a plug, as the cables are connected directly to the machine or control panel.
– Usage Recommendations: The G-Led model is recommended for workbenches, CNC machines, and in the mechanical sector, where the operator must work with large components.

Functions

  • CE
  • ECO
  • GOLIA
  • IK05
  • IP66
  • LED

Mounting Systems

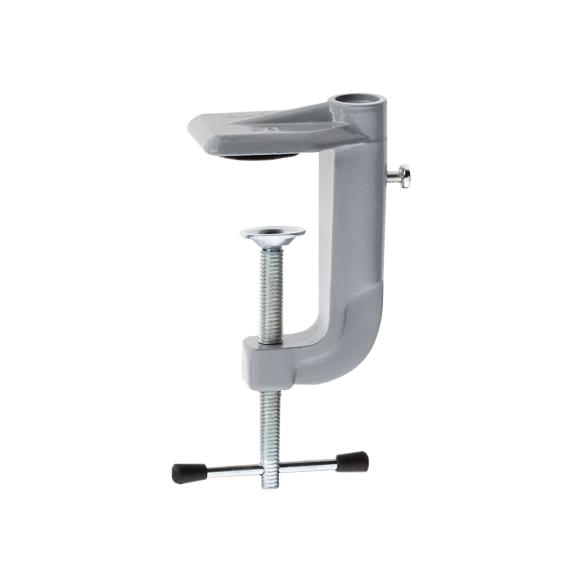

Table Clamp (Requires AMG Adapter)
S11

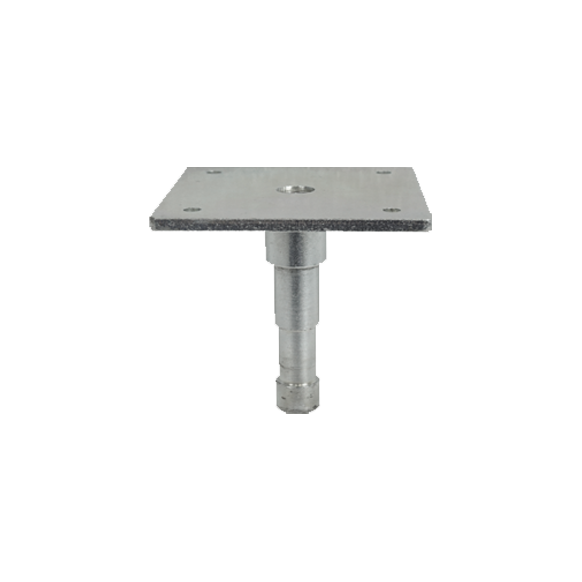

Adapter for Table Clamp and Mobile Base Integration
AMG

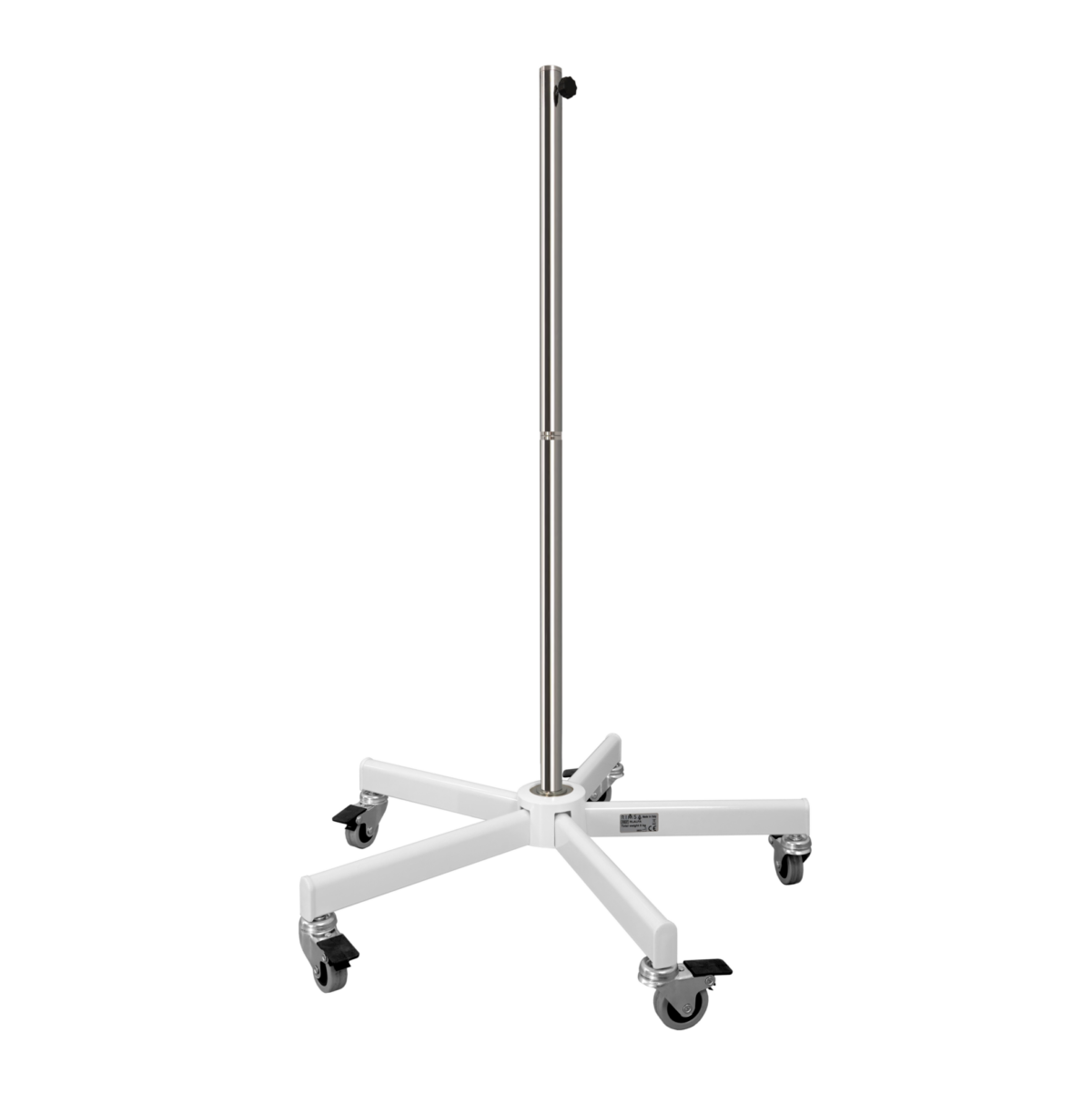

5-Wheel Rolling Stand with Brakes (Requires AMG Adapter)
RLBI

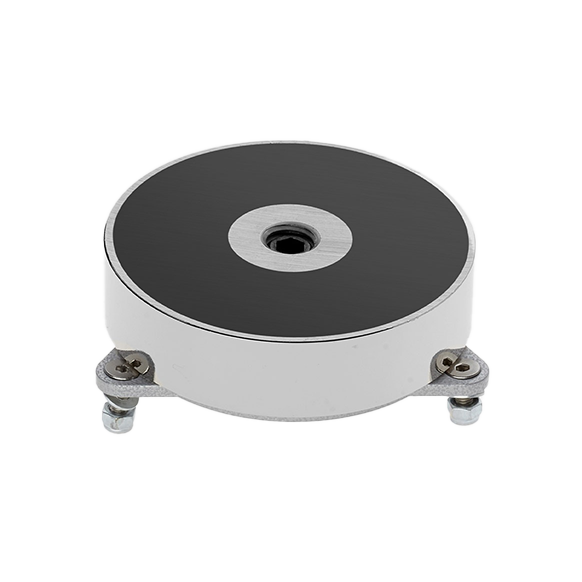

Magnet
C80

Accessories

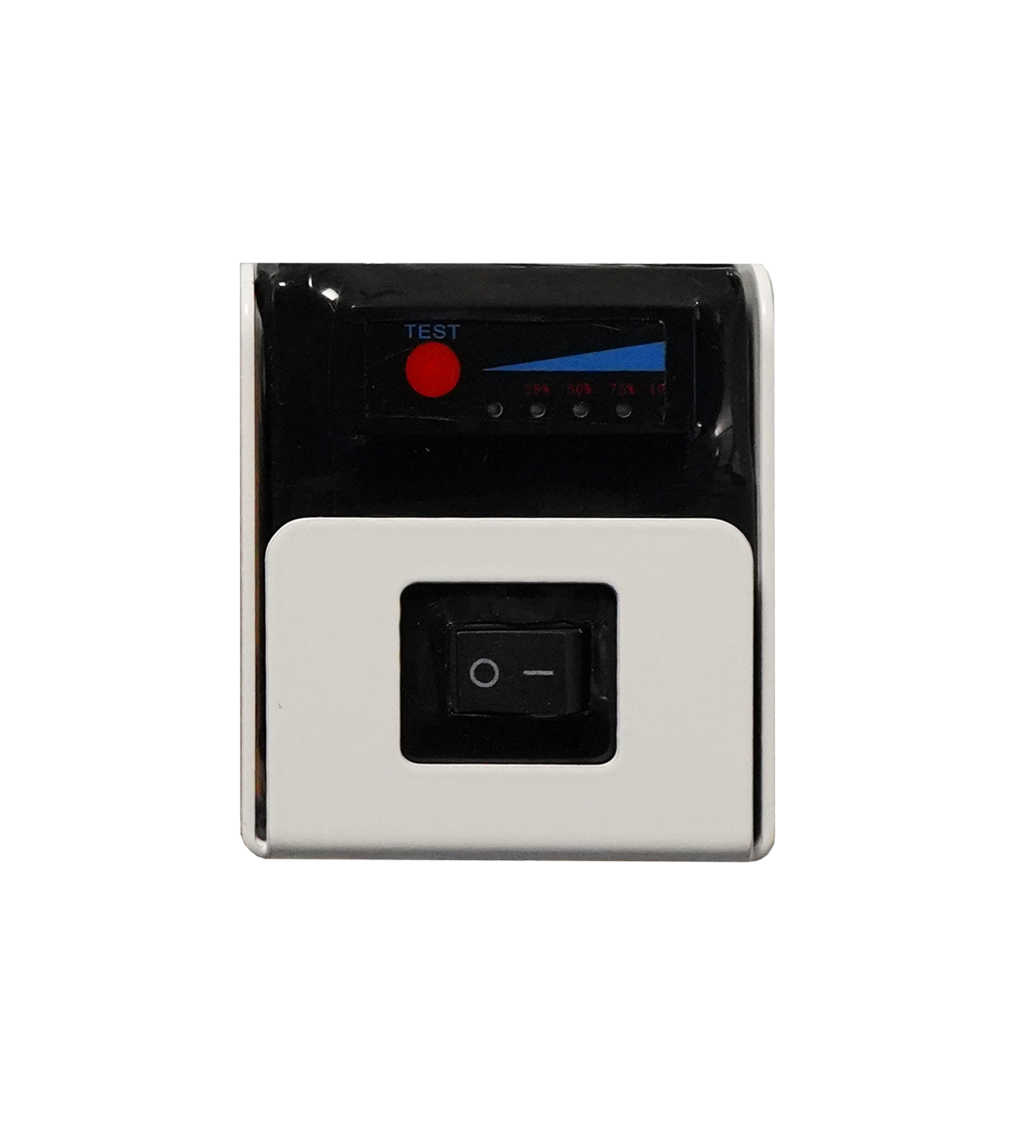

Battery Group
KITB24RL

Technical Specifications – G-LED

G-Led BT

Power Consumption

8 W

Illuminance at 50 cm

30.000 Lux

Color Temperature

5.000 K

LED Lifespan

60.000 hours

IP Rating – Head

IP 68

IP Rating – Body

IP 66

Impact Protection Rating IK

IK 05

Power Supply

12-24 V ac/dc - low voltage

Movement System

3-joint swivel arm

Colors

Hammered Grey

G-Led TR

Power Consumption

8 W

Illuminance at 50 cm

30.000 Lux

Color Temperature

5.000 K

LED Lifespan

60.000 hours

IP Rating – Head

IP 68

IP Rating – Body

IP 66

Impact Protection Rating IK

IK 05

Power Supply

110-240 V - regular voltage

Movement System

3-joint swivel arm

Colors

Hammered Grey
