Alfa Flex

Outpatient Room Lighting Line

Compact Design, Outstanding Performance

Eye-catching and functional design, high-performance technology: the best in an examination lamp.
The new design makes the lamp extremely easy to use and maneuver, with an additional reflector rotation for enhanced flexibility.

ALFA FLEX Surgical Lamp

The Alfa Flex lamp features a flexible arm that allows easy adjustment of the reflector for precise positioning. It is equipped with three independent LED light sources, each with a collimated lens optical system and a protective glass cover. This triple-light design significantly reduces shadowing and provides deep, cylindrical illumination with minimal heat emission. Each LED includes an integrated resistor to ensure uninterrupted operation—even in the unlikely event of a single LED failure.

Its newly refined design enhances usability and maneuverability, including an added reflector rotation function for improved versatility. Light intensity is adjustable via a touch-sensitive control panel, offering smooth dimming from 4% to 100%. The power transformer is integrated into the plug to reduce weight at the arm, and is supplied with interchangeable plugs (UK, US, EU), making Alfa Flex ideal for use in any clinical setting.

Accessories

Battery Group

Mounting Systems Available

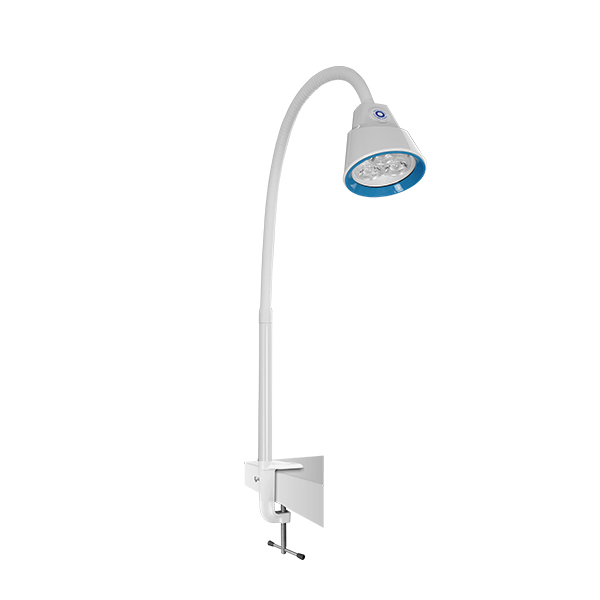

Table Clamp
S11

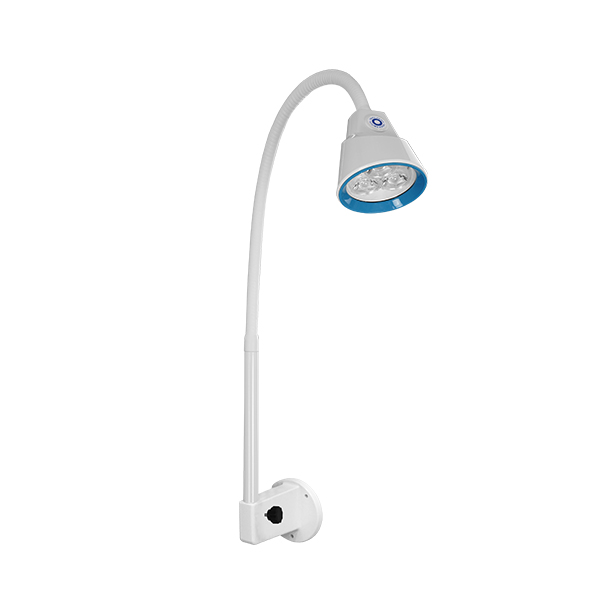

Wall Mount Clamp
S12MED

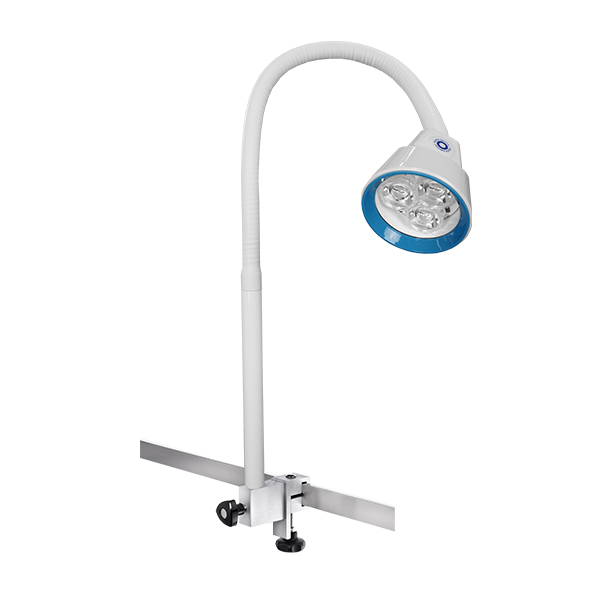

Rail Clamp
Z400819

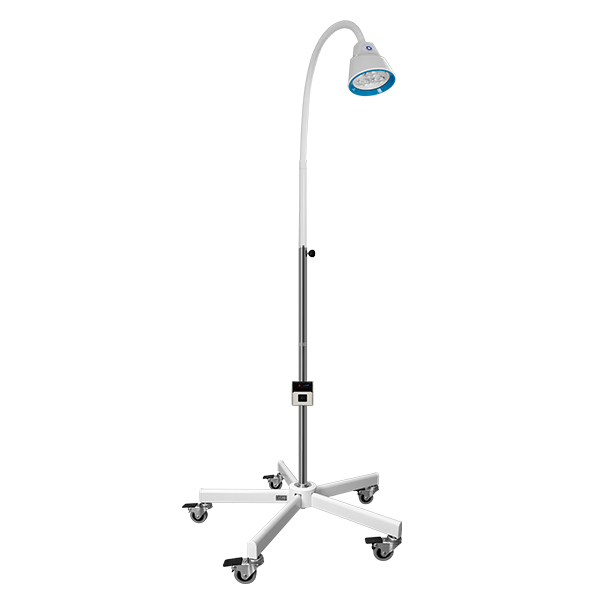

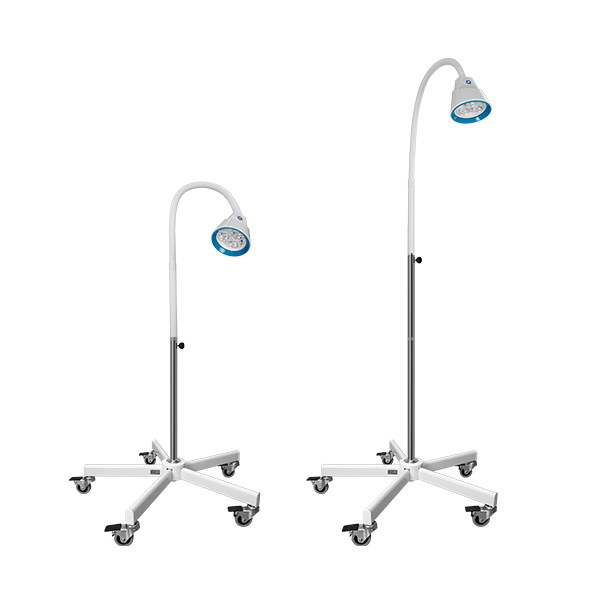

5-Wheel Rolling Stand with Brakes
RLALFA

Surgical Fields

ALFA FLEX Available Configurations

Technical Specifications

Illuminance at 0.5 Mts (Ec)

70.000 Lux

Lamp Head Diameter

9,5 cm

Color Temperature

4.000 K

Light Field Diameter

130 mm

LED Lifespan

> 60.000 hours

Light Intensity Control

4-100%

Arm

Flexible
